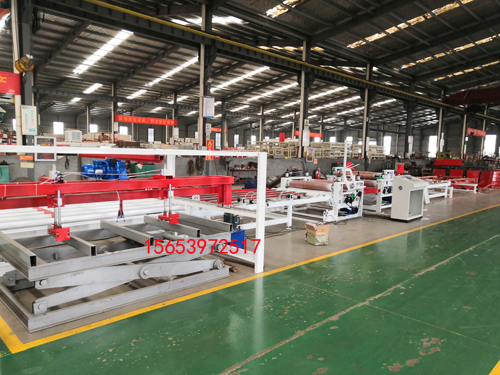

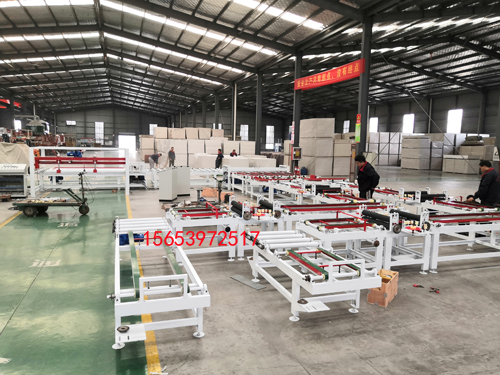

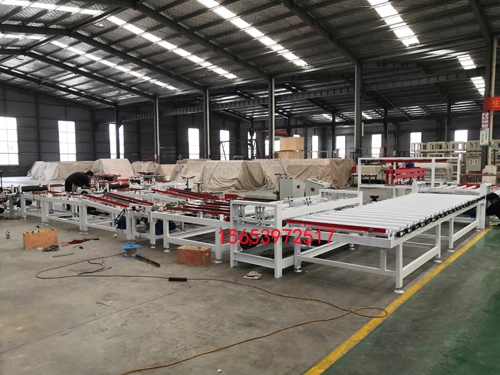

High-end ceiling tiles production line
一、.High-end doubel side laminating machine ：
1、In coated module, paste PVC film and aluminum composite membrane were adopted a flattening device,
two flattening device and universal flattening device, posted on the flatness of plate is very good;
2、In coated module, paste PVC film and aluminum composite membrane with the inflatable shaft device, make
in replacing the PVC film and aluminum-plastic film saves time and effort;
3、In coated module, paste PVC membrane and aluminum-plastic film of automatic feeding device, has been
adopted in the replacement of PVC film and aluminum-plastic film glue saves time and effort, the higher degree
of automation;
4、 In coated module, adopt the automatic defoaming device that is cleaning the machine, make it paper without
air bubbles, avoid the waste of raw materials and increase the working efficiency.
二、.High-end gypsum board cutting machine ：
1、 In the level of cutting plate and the secondary, cutting plate the adjustment of the length and width of
the higher degree of automation, using the hand wheel adjustment, without disassembly, convenient adjustment;
2、 In the level of cutting plate, increased the device to remove the burrs, make cutting board material is of more
smooth, more beautiful.
三、.High-end packing machine ：
1、 High packing machine packaging range is big, the range is 200-1220 mm, this can apply to all kinds of sheet
metal packaging;
2、 Highly baling press pack large thickness: 7 mm plate can be packaged 20, 9 mm plate can be packaged 18 block;
3、Highly baling press pack faster, every minute can be packaged package;
4、Highly baling press pack better in overall appearance more beautiful.
四、. Accessories Chosen ：
High-end ceiling production line, the key parts adopt imported brand, non-critical parts adopt domestic famous brands.
Mid-end ceiling tiles production line
一、.Mid-end doubel side laminating machine：
1、In coated module, paste PVC film and aluminum composite membrane were adopted universal flattening device,
make the sheet posted good flatness;
2、In coated module, paste PVC film and aluminum composite membrane with inflatable shaft device, but with the
method of the mechanical tension;
3 、In coated module, paste PVC membrane and aluminum-plastic film of automatic feeding device, has been adopted
in the replacement of PVC film and aluminum-plastic film glue saves time and effort, the higher degree of automation;
4、In coated module, there is no adopted automatic defoaming device that is cleaning the machine.
二、.High-end gypsum board cutting machine：
In the level of cutting plate and the secondary, cutting plate adopt mechanical adjustment, the regulation
of the length and width adjustment way without high sawing machine high degree of automation;
In the primary sawing plate, there is no added to remove burrs；
三、.High-end packing machine：
The large range of packaging and scope of the packer is not adjustable
The thickness of end of baling press pack 7 mm plate can be packaged 12, 9 mm plate can be packaged 10 block;
In the end of the baling press without high-end fast packaging, canbe packaged 14 packages per minute;
In the end of the baling press effect without high-end packaging good, but also is very beautiful in appearance；
4. Accessories Chosen：
The ceiling in the production line of the key parts adopt domestic famous brands, non-critical parts adopt domestic brands
commonly, but the quality is very reliable
